Single Acting, Plain Ram, Spring Return Type
Capacity:10 - 200 Ton l Stroke: 30 - 60mm l Max. Pressure: 700 Bar
Available Capacity from 10 to 200 Ton, stroke 30 to 60 mm.

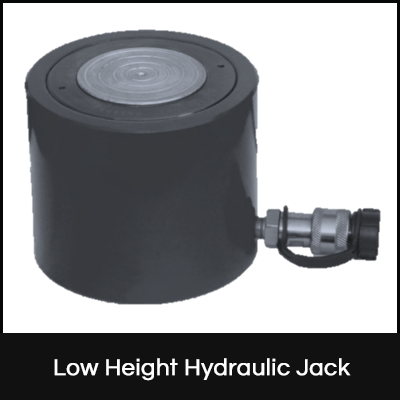

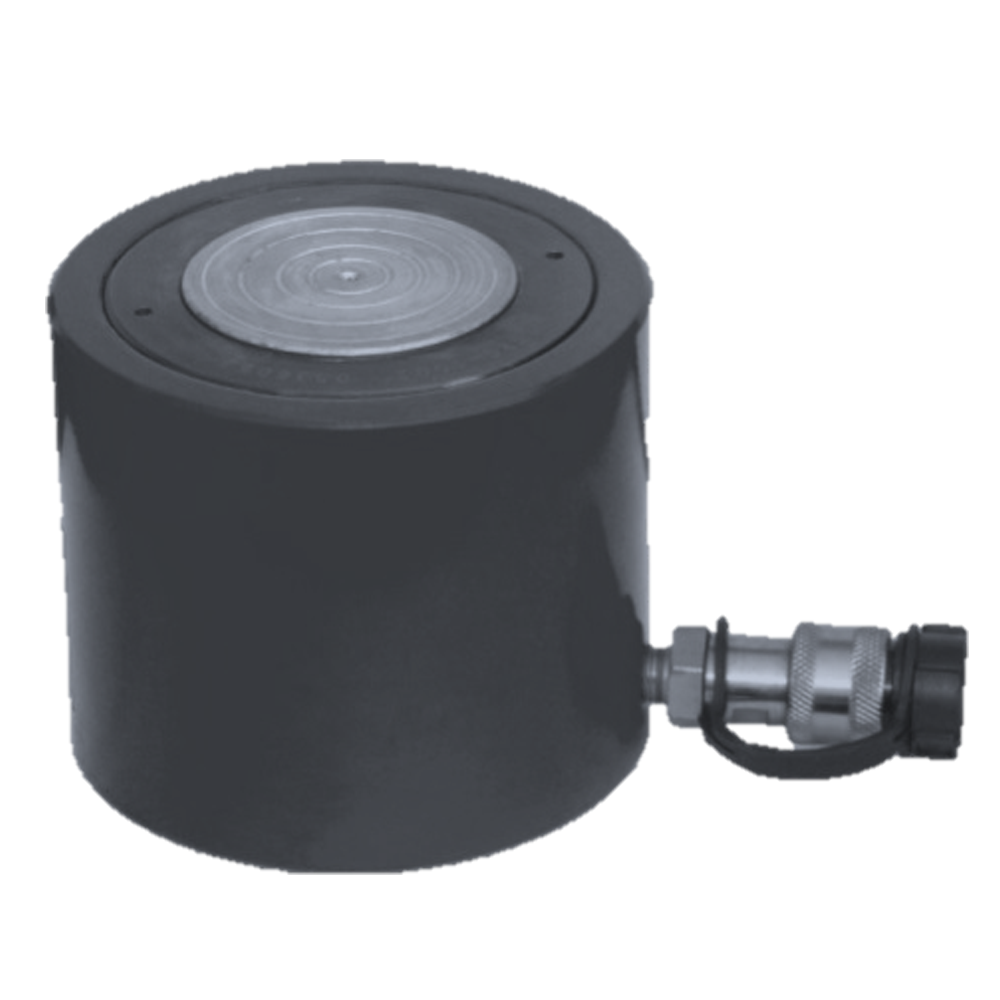

We provide Low Height Hydraulic Jack for Low profile for use in confined spaces, machinery positioning, tool fastening. Load return or spring return option available. Compact, low height design for use where other cylinders will not fit. Quick Change coupler and dust cap included in all models. Hard chrome plated high-quality steel piston. Single-acting spring return ideal for applications with low clearance. Heavy equipment lifting & alignment, Spherical saddle reduces damage tojack against off-center load. Ensure no gap between jack & loadto be lifted, to utilize full stroke. Customized solution provided on request of the customer.
Technical Specification
| Model No. | Capacity (TON) | Close Height | Stroke | Body Dia. | Bore Dia. | Ram Dia. | Weight(Approx) |
|---|---|---|---|---|---|---|---|
| PJL10-30 | 10 TON | 90mm | 30mm | 70mm | 45mm | 35mm | 2.5 Kg. |
| PJL20-50 | 20 TON | 115mm | 50mm | 90mm | 63mm | 50mm | 5 Kg. |
| PJL30-50 | 30 TON | 120mm | 50mm | 100mm | 75mm | 60mm | 6 Kg. |
| PJL50-60 | 50 TON | 125mm | 60mm | 130mm | 100mm | 80mm | 11 Kg. |
| PJL75-60 | 75 TON | 145mm | 60mm | 155mm | 120mm | 95mm | 18.5 Kg. |
| PJL100-60 | 100 TON | 150mm | 60mm | 180mm | 140mm | 110mm | 23.5 Kg. |
| PJL50-60 | 150 TON | 165mm | 60mm | 220mm | 170mm | 140mm | 43 Kg. |
| PJL200-60 | 200 TON | 200mm | 60mm | 255mm | 200mm | 160mm | 66 Kg. |
Light Weight, Low Profile Design for use in Confined Spaces.
Also Available as per Set,with Hand Pump.
Female Coupler & dust cap provided on all models.
Also Available as per Requirement. (Customized as per specs. Provided).
Higher capacity and customized solutions on request.
Specifications are subject to change due to continual improvement.
Capacity and Stroke specified are maximum safe limits. Use at 80% of rating as safe practice.
Technical Specification for Hand Pump set: - Working Pressure 700bar
| Hand Pump (Single Plunger) 1Ltr. Oil Capacity Or |
| 2mtr. Long High-Pressure Hose Pipe with both end fittings |
| Pressure Gauge 1000 Kg/Cm2 |
